Hot Water Demand Time Series Extraction

Rate Design Platform Team 2025-06-24

Hot Water Demand Time Series Extraction

Overview

This document describes the methodology for extracting and calculating time series of hot water demand from ResStock simulation data, specifically for heat pump water heater (HPWH) analysis in time-of-use (TOU) rate design studies.

Background

Understanding hot water usage patterns is critical for modeling behavioral responses to TOU electricity rates. When HPWHs are curtailed during peak periods, water temperature may drop, creating comfort penalties for consumers. To quantify these penalties, we need detailed time series of hot water demand.

S3 Configuration and Data Access

Calculation Framework and Notation

Key Variables (Consistent with TOU Schedule Model)

Symbol Type Description Units Dimension
Sets
\(M\) Set Months in simulation year, \(m \in \{1, 2, ..., 12\}\) - 12 × 1
\(T\) Set Time periods in billing month, \(t \in \{1, 2, ..., T\}\) where \(T \approx 2976\) -
\(H\) Set Peak hour periods, \(H \subset T\) -
Parameters
\(U_{m,t}^{HW}\) Parameter Exogenous hot water usage schedule at time \(t\) in month \(m\) L/15min M × T
\(T_{m,t}^{setpoint}\) Parameter Hot water temperature setpoint at time \(t\) in month \(m\) °C M × T
\(T_{m,t}^{ambient}\) Parameter Ambient water temperature at time \(t\) in month \(m\) °C M × T
\(\rho\) Parameter Water density kg/L 1 × 1
\(c_p\) Parameter Specific heat of water J/kg·°C 1 × 1
\(COP\) Parameter Heat pump coefficient of performance - 1 × 1
State Variables
\(T_{m,t}^{tank}\) Variable Tank water temperature at time \(t\) in month \(m\) °C M × T
\(Q_{m,t}^{unmet}\) Variable Thermal unmet demand at time \(t\) in month \(m\) J/15min M × T
\(D_{m,t}^{unmet}\) Variable Electrical equivalent unmet demand at time \(t\) in month \(m\) kWh/15min M × T

Data Sources and Components

Input Data Structure

The hot water demand time series is constructed from three primary data sources:

  1. Schedule Files

    • Hot water fixture schedules provided for each bldg_id in 15-minute interval data (35,040 intervals per year)

    • Normalized profiles representing timing and relative intensity - tells us when hot water is used throughout each time interval \(t\) and what % is used relative to the total daily hot water demand.

  2. HPXML Files

    • Building specifications and water heater parameters

    • Tank capacity, setpoint temperatures, and system configurations

    • Usage multipliers for scaling baseline demand, which converts normalized schedule to actual water volumes.

    • Accounts for household size and other building characteristics

  3. Weather Data (EPW Files)

    • Ambient temperature conditions \(T_{m,t}^{ambient}\)

    • Required for heat pump performance modeling

Calculation Methodology

Step 1: Water Draw Calculation

Hot water draws are calculated by combining schedule and usage data:

\[ U_{m,t}^{HW} = \text{Normalized_Schedule}_{m,t} \times \text{Usage_Multiplier}_m \times \text{Daily_Base_Demand}_m \]

Where the normalized schedule provides temporal distribution and the usage multiplier scales to building-specific consumption levels.

Step 2: OCHRE Simulation Process

The OCHRE building physics framework processes water draws through:

  1. Exogenous Water Demand

    • Water usage \(U_{m,t}^{HW}\) is specified by schedule (not responsive to system state)

    • Represents actual household consumption patterns

    • Independent of tank temperature \(T_{m,t}^{tank}\) or heater availability

  2. Tank Temperature Modeling

    • Simulates water heater tank temperature stratification \(T_{m,t}^{tank}\)

    • Models thermal dynamics during draw events

    • Accounts for heat pump performance characteristics

  3. Outlet Temperature Calculation

    • Determines actual delivered water temperature

    • Based on tank conditions and draw magnitude

    • Varies with system operating state

Step 3: Unmet Demand Calculation

For TOU analysis, “unmet demand” quantifies comfort penalties:

\[ Q_{m,t}^{\text{unmet}} = \begin{cases} U_{m,t}^{\text{HW}} \cdot \rho \cdot c_p \cdot (T_{m,t}^{\text{setpoint}} - T_{m,t}^{\text{tank}}) & \text{if } T_{m,t}^{\text{tank}} < T_{m,t}^{\text{setpoint}} \text{ and } U_{m,t}^{\text{HW}} > 0 \\ 0 & \text{otherwise} \end{cases} \]

Convert to Electrical Equivalent:

\[ D_{m,t}^{unmet} = \frac{Q_{m,t}^{unmet}}{COP \cdot 3,600,000} \]

Where the factor 3,600,000 converts Joules to kWh.

Output Time Series

The extraction process generates:

  1. Hot Water Volume Time Series

    • 15-minute interval data \(U_{m,t}^{HW}\) for each building

    • Units: L/15min

    • Annual profiles (35,040 data points)

  2. Temperature Profiles

    • Tank temperature \(T_{m,t}^{tank}\) over time

    • Setpoint tracking performance against \(T_{m,t}^{setpoint}\)

  3. Unmet Demand Time Series

    • Electrical equivalentof thermal energy shortfall \(D_{m,t}^{unmet}\) for comfort penalty calculations in W

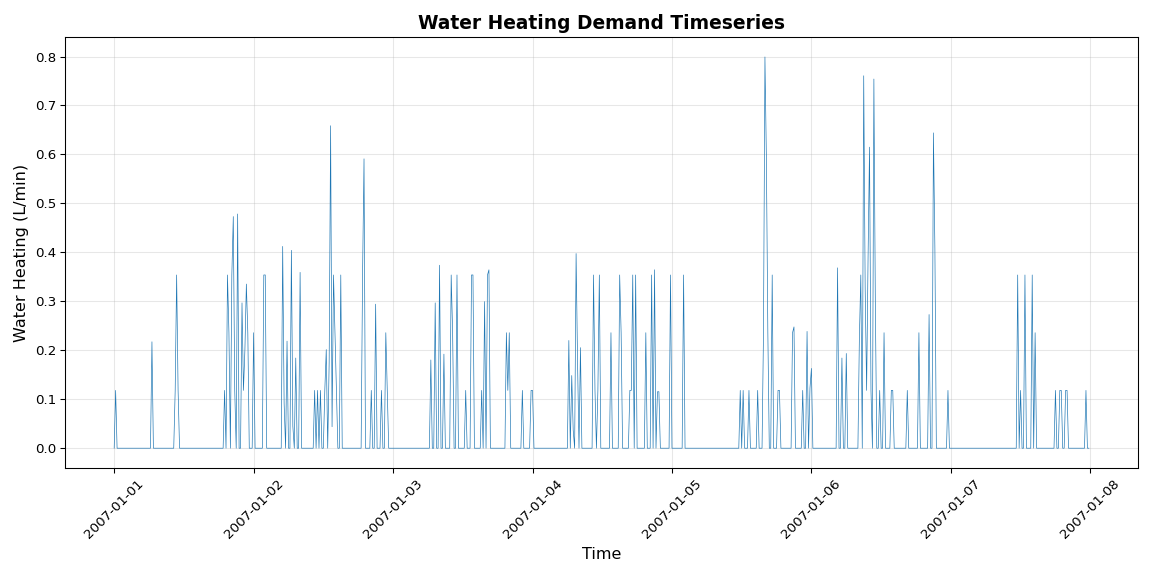

Example of Water Demand Time Series

Water Heating Demand
Timeseries
